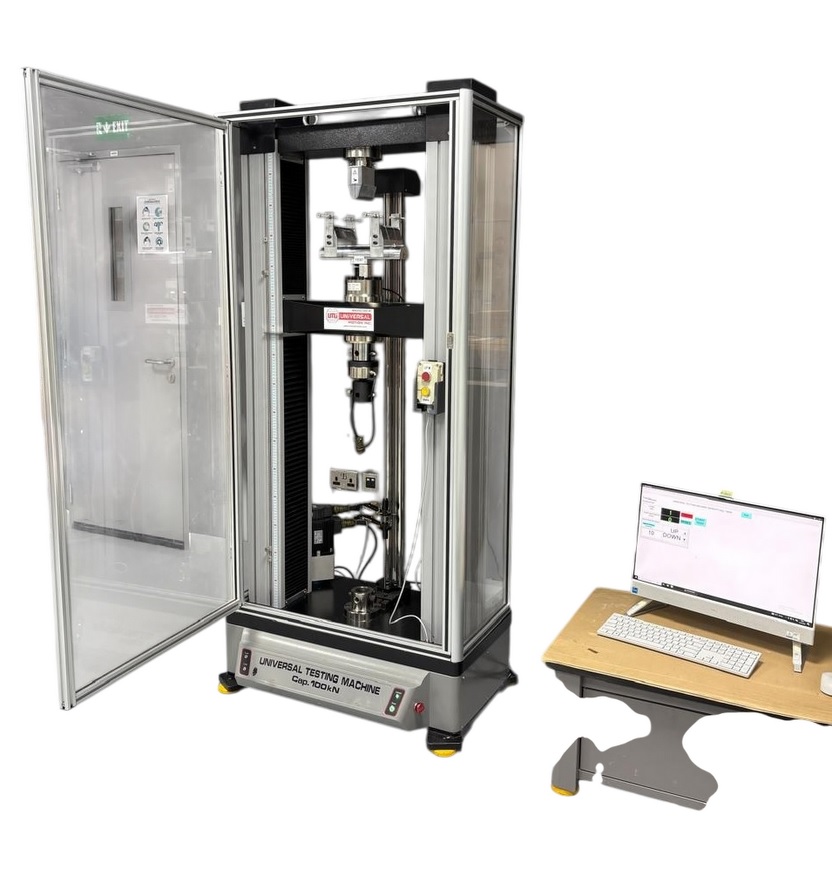

Computerized Universal Testing Machine

Name: Computerized Universal Testing Machine
Brand: UNIVERSAL MOTION INC.
Price: 1500000.0 INR
Availability: InStock

1500000.0 INR/Piece

Get a Price/Quote

Product Details:

Humidity <85
Product Type CASTING, MS
Number of Specimens 1
Capacity 400 kn Kg/hr
Port Size SERIAL
Usage Tensile, compression, bending, flexural test
Temperature 26 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Computerized Universal Testing Machine Price And Quantity

Price 1500000.0 INR/Piece
Minimum Order Quantity 1 Piece

Computerized Universal Testing Machine Product Specifications

Application Industries, Universities, Colleges, Quality Control Labs
Power 3 Watt (w)
Weight 1500 Kilograms (kg)
Test Stroke 200
Material M.S., CASTING
Test Width 500 Millimeter (mm)
Power Supply 3 PHASE, 415 V, 50 HZ AC
Dimension (L*W*H) 2030*750*2180 Millimeter (mm)
Specimen Size 400 MM Millimeter (mm)
Operate Method Hydraulic Servo Control
Classification 90248099
Voltage 3 Watt (w)
Test Range 0-400
Machine Weight 1500 Kilograms (kg)
Control Mode HYDRAULIC SERVO CONTROL
Temperature 26 Celsius (oC)
Color BLUE, GRAY, WHITE
Humidity <85
Number of Specimens 1
Product Type CASTING, MS
Capacity 400 kn Kg/hr
Test Speed 0-150
Port Size SERIAL
Usage Tensile, compression, bending, flexural test

Computerized Universal Testing Machine Trade Information

FOB Port PUNE, MUMBAI
Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5 Week
Sample Available No
Packaging Details STANDARD PACKING
Main Export Market(s) Middle East, Africa
Main Domestic Market All India
Certifications ISO

Product Description

Technical Specifications :

MODEL	UMI-50A
Load Capacity	50Kn
Calibration standard	Class 0.5 according to ISO 7500-1 - Meets ASTM E-4
Testing Load Accuracy	0.5%
Testing Load Range	0.4%100%FS
Load Resolution	1/500000FS
Deformation measuring range	0.2%100%FS
Deformation accuracy	0.5%
Deformation resolution	1/500000FS of the max deformation
Test control mode	Three closed loop control, stress, strain and displacement
Displacement accuracy	Within 0.5% of the value
Displacement resolution	0.04m
Controls parameter :
Constant force control range	0.0015FS/s
Constant force control accuracy	When the rate is < 0.05%FS/s, it is within 2% of the set value; when the rate is 0.05%FS/s, it is within 0.5% of the set value;
Constant deformation control range	0.0055%FS/s
Constant deformation control accuracy	When the rate is < 0.05%FS/s, it is within 2% of the set value; when the rate is 0.05%FS/s, it is within 0.5% of the set value;
Crosshead speed range	0.001500mm/min
Crosshead speed accuracy	Within 0.5% of the value
Mainframe parameters :
Testing space (Crosshead Travel)	1100mm
Max. Tensile Testing Space	770mm
Test width	450mm
Overall Dimensions	850x550x1824mm
Weight Approximate	420kg
Power supply	1kW, AC220V10%,50Hz/60Hz Can be changed as per customer requirement if possible, customer need to confirm in PO before production.

Note:

*Extra wide and/or extra height frames are available.

*Power supply system is completely customizable.

*Tensile space, test width, and speed is completely customizable.

Precision Testing for Varied Applications

This Computerized Universal Testing Machine stands out for its versatility, supporting tensile, compression, bending, and flexural tests. Its hydraulic servo control ensures high accuracy and consistent results, making it suitable for many materials and multiple industries. The digital interface simplifies data acquisition, streamlining quality control and research processes for universities and laboratories alike.

Robust Design with Advanced Control Features

Manufactured from high-grade mild steel casting, this machine boasts exceptional durability, a test width of 500 mm, and an ergonomic dimension of 2030x750x2180 mm. Hydraulic servo control offers precise manipulation of test parameters, while the serial port enables modern data connectivity. Its flexibility and strength meet the demands of both academic and industrial environments.

FAQ's of Computerized Universal Testing Machine:

Q: How does the hydraulic servo control enhance the operation of the Universal Testing Machine?

A: The hydraulic servo control system allows for precise and stable application of force during testing, significantly improving the accuracy and reproducibility of tensile, compression, bending, and flexural measurements. It also enables smooth and controllable test speed adjustments as per testing requirements.

Q: What types of specimens and materials can be tested with this machine?

A: This machine is designed to test a wide variety of materials and specimens up to 400 mm in size. It is suitable for metals, polymers, composites, and more, accommodating industrial and research specimens for diverse mechanical property analyses.

Q: When should this testing machine be used in a quality control or research setting?

A: It is ideal for use during material development, routine quality assurance, educational demonstrations, and research projects where accurate measurement of mechanical properties like tensile strength, compression resistance, and flexural performance are critical.

Q: Where is this Universal Testing Machine commonly installed?

A: The machine is typically installed in industrial production facilities, university engineering and science departments, technical colleges, and professional quality control laboratories throughout India and abroad.

Q: What is the process for conducting a test on this machine?

A: To perform a test, users securely mount the specimen (up to 400 mm) in the testing grips, select the appropriate test mode and parameters using the computerized control panel, and start the hydraulic servo system to execute the programmed test cycle, with data recorded digitally.

Q: What benefits does computerized testing bring over manual systems?

A: Computerized testing ensures accurate and fast data collection, minimizes operator error, and allows automatic analysis and generation of comprehensive reports, which improves efficiency and traceability in quality control and R&D applications.

Q: How can users ensure proper operation and maintenance of the machine?

A: Operators should follow the user manual, routinely inspect hydraulic components, keep electronic systems dust-free, and ensure calibration checks per industry standards for optimal and long-term performance.
