Automatic Compression cum Flexural Testing Machine

Automatic Compression cum Flexural Testing Machine

1579000.0 INR/Number

Get a Price/Quote

Product Details:

Number of Specimens any
Application concrete cube testing
Max Height 1050
Weight 900 Kilograms (kg)
Automation Grade Automatic
Temperature 45 Celsius (oC)
Response Time 6 Week
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Automatic Compression cum Flexural Testing Machine Price And Quantity

Price 1579000.0 INR/Number
Minimum Order Quantity 1 Number

Automatic Compression cum Flexural Testing Machine Product Specifications

Power Supply 220V, 50 Hz
Interface Type USB
Classification 90248099
Product Type Concrete Cube
Mounting Type Floor
Control Mode Automatic
Dimension (L*W*H) 445x375x1050 Millimeter (mm)
Measuring Range 3000~30000 Newton
Operate Method Automatic hydraulic
Hardness 55 HRC
Port Size USB
Display Type Computer
Voltage 220 Ohm (ohm)
Usage lab testing
Features Automatic
Frequency 50 Hertz (HZ)
Power 220 Volt (v)
Automation Grade Automatic
Test Width 150 Millimeter (mm)
Max Height 1050
Weight 900 Kilograms (kg)
Number of Specimens any
Machine Weight 900 Kilograms (kg)
Application concrete cube testing
Specimen Size 150x300 Millimeter (mm)
Accuracy 1 %
Capacity 300 Compression Ton
Test Range 300~3000 KN Compression and 10~100 KN Flexural
Material hard steel
Color Black and Yellow
Humidity 65
Test Stroke 50
Temperature 45 Celsius (oC)
Response Time 6 Week

Automatic Compression cum Flexural Testing Machine Trade Information

Delivery Time 6 Week
Main Export Market(s) Middle East, Asia, South America, Australia, Western Europe, North America, Central America, Eastern Europe, Africa

Product Description

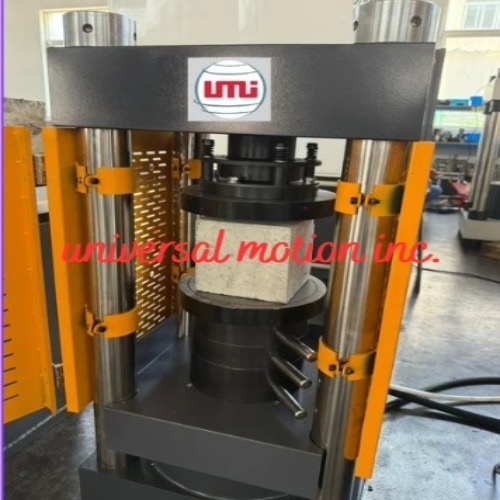

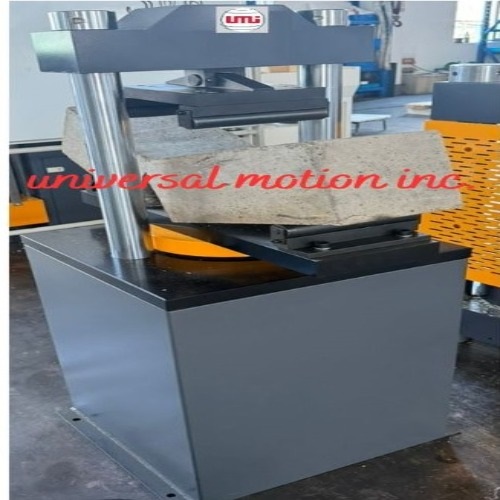

COMFELX-3000/100 is designed for testing the compressive of concrete cube and flexural strength of brick, cement, concrete beam with one controlling system.

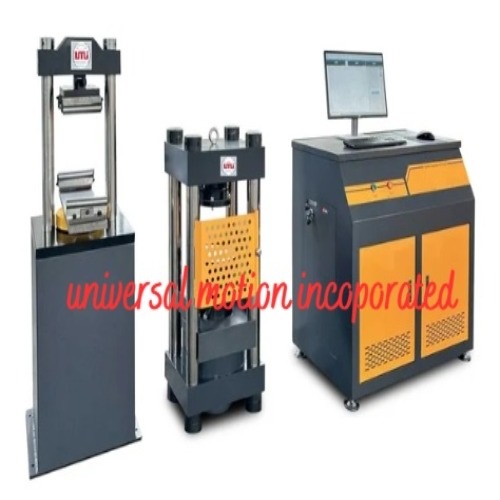

It is a high-precision material testing equipment, driven by hydraulic power with computer data acquisition & processing, can make closed-loop control and automatic detection. It consists of four parts: main engine, oil source (hydraulic power source), measurement & control system and test apparatus.
